Introduction
In multi-batch programs utilizing precision brass milling, an expensive cycle often plays out: approved drawings, but first parts rejected for threads, surface finish, or dimensional shift. Rejections spiral, the line rhythm falters, and emergency orders shrink profits. Industry numbers indicate first inspection rejection rates running 60%-70% on many programs. The problem often is not the price of the equipment, but a gap between material choice and process management, where mismatched alloy and cutting conditions, surface reaction due to coolant, bad tool design resulting in burr reflux, and audits that don’t test capability become the culprit. Using another lower priced shop just moves the variables to another location.
This paper explores a framework based on data to manage CNC milling brass as a controllable process: lock the variables via alloy, coolant, tools, and tolerance layers, and filter the candidates against measurable criteria. There are five questions that deconstruct the problem, starting with misidentification of the problem cost, audit checklists, cutting principles, cost levers, and a case-style solution without changing the drawing.
Is Your Brass Machining Cost Actually a Process-Capability Problem in Disguise?
Most teams work out the cost of brass machining by negotiating material cost and machine cost, but 60%-80% of additional cost comes from three silent leaks – poor initial inspection yield leading to replenishment, uneven texture leading to assembly inspection, and poor traceability causing quarantine. The simple cost model that considers only material cost, cycle time, and tooling cost misses a volatile component – non-conformance tax (costs of rework, cost of scrap, expedite cost, delay cost).
Failure of capability is clearly visible in the condition where the same feature varies ±0.015 mm between runs or surface roughness varies in random manner within the range of Ra 0.8-3.2 µm. This condition shows an unlocked process mean and variance. Fix is not the better spindle, but machining approach and audit base. For more information on the decomposition of these hidden costs, follow this reference for brass milling services and suppliers: brass milling services
How to Choose a CNC Milling Supplier When Tolerances Tighten and Volumes Scale?
As tolerances become more stringent, the supplier decision must move away from gut feel to an empirical check list. The most solid criteria on which to base the decision of how to select a CNC milling supplier comes down to four empirical gates. First, verify equipment baseline with documentation including spindle speed range against brass, axis repeatability through calibration, and in-process measurement for closed-loop offset compensation. Second, evaluate quality management system evidence relevant to the end use application chain — ISO 9001 baseline, plus IATF 16949 for automotive, ISO 13485 for medical, or AS9100D for aerospace.
Third, request process deliverables for each run— a competent brass parts supplier should be able to provide material certificates (traceable to the melt), first article inspection, and capabilities demonstration for critical dimensions. Fourth, evaluate process expertise for brass parts in particular – the supplier should be able to demonstrate their knowledge of how to distinguish their brass CNC milling services by grade such as H59 and HPb59-1 based on speed/feed, coolant strategy, and tooling to avoid built up edge. Only once all four gates have been passed is quotation comparison worth consideration; otherwise, the lower cost merely means faster route to scrap.
What Cutting Dynamics Make CNC Milling Brass Different From Aluminum or Steel?
The trap in CNC milling brass lies in its soft-but-tenacious nature: high thermal conductivity invites built-up edge and burr reflux. Even free-cutting leaded variants punish mismatched feed and speed. Disciplined shops apply three rules in precision brass milling. Speed corrections are grade-sensitive, pulling back from peak surface speed to stabilize chip formation. Coolant choice is metallurgical—air or mist avoids zinc reaction risks from water-based fluids. Tool geometry (polished flutes, sharp edges) outperforms exotic coatings, since adhesion, not wear, drives finish failure. Before committing to volume, teams rely on brass prototyping services to validate process windows with controlled coolant and tool variants, ensuring the envelope is repeatable—not just a sample.
Which Tolerances, Surface Goals, and Traceability Rules Actually Move the Final Price?
If the goal is to control brass machining cost without accidentally inflating it, spending should track yield contribution. Four levers matter most in precision brass milling.
Tolerance and Surface Discipline
- Functional vs Non-Critical Features
Not every face requires H7/g6-level control. Splitting features into functional control faces (sealing diameters, bearing seats) and non-critical surfaces (clearance pockets) avoids unnecessary setups and gauging.
- Explicit Ra Targets
For quality brass CNC parts, specifying Ra bands on functional faces and a default “as-machined” allowance elsewhere eliminates shift-to-shift finish variation.
Traceability, SPC, and Scale Logic
Batch-level traceability (back to melt certificate) combined with lightweight SPC run charts compresses ±0.015 mm wander. During prototype phases, the purchase is speed and feedback; in production, it is stability and records. Internal teams lacking multi-axis capacity often hand off to a CNC milling precision factory-level partner who maintains the documentation thread from first-article through scaled batches: CNC milling precision factory.

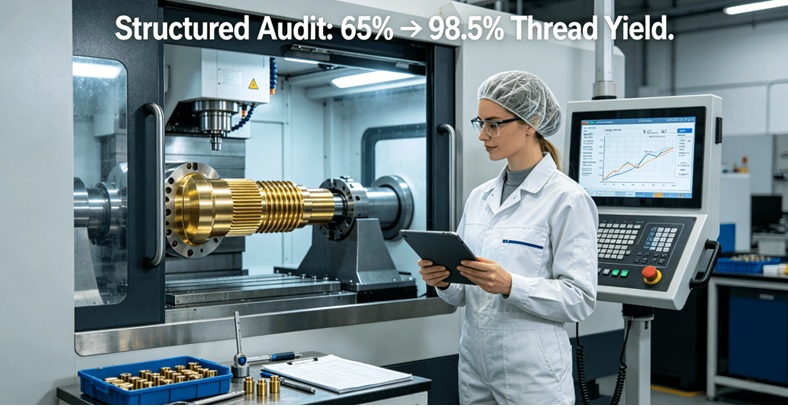

Can a Structured Audit Lift Thread Pass Rate From 65% to 98% Without Changing the Drawing?
A typical scenario—written here in third person—illustrates how audit‑driven locking works better than drawing heroics.
Tooling and Chip Management Fixes
l Tool Geometry and Offset Standardization
A sharper, polished tool profile suited to brass replaced the previous geometry. Tool-diameter compensation was standardized across setups, eliminating offset variability.
l Staged Entry and Chip Evacuation
Single-pass plunges gave way to a staged axial entry plan. Air/mist cooling directed chips away, reducing micro-scoring and thread run-out collapse.
On-Machine Probing and Results
Pitch-diameter drift was caught proactively via in-process probing. Offsets updated within a documented band; trends exceeding limits triggered a hard stop. Thread acceptance rose from 65% to 98.5%, first-inspection yield exceeded 97%, and expedite costs vanished.
Summary
Brass art cost overruns stem from unnamed process variables. The fix: decompose failures into countable losses, screen partners with evidence, match cutting dynamics to the alloy, and enforce tolerance/traceability discipline. Doing so typically yields 20–35% lower total cost. Next step: provide a 3D file, alloy grade, and CTQ requirements for a DFM review—transforming quotes from guesses into cost models.
Author Bio
This overview draws on production‑case archives and process‑audit frameworks used by teams managing high‑mix precision components; the author collaborates with engineering groups including LS Manufacturing to convert shop‑floor data into reusable supplier‑selection checklists and tolerance‑allocation guidelines.
FAQs
Q1: Does higher spindle power automatically fix poor brass surface finish?
A: Not usually. Finish on brass is dominated by edge sharpness, feed‑per‑tooth, and chip re‑contact prevention. A higher‑power head without matching these variables often just cuts faster into bad surface quality.
Q2: How many samples are needed for a reliable CPK estimate on threaded features?
A: Industry practice recommends at least 30 consecutive pieces from a single setup run. Fewer than 20 samples tend to overestimate capability and miss drift patterns caused by tool wear progression.
Q3: Should drawings always specify surface roughness for every face?
A: No. Over‑specifying all surfaces raises cost without yield gain. Only functional sealing faces, mating diameters, and aesthetic visible areas need explicit Ra limits. Other faces can follow default as‑machined condition.
Q4: Is it better to use water‑soluble coolant or oil mist for brass milling?
A: Oil mist or minimal quantity lubrication is generally preferred. Water‑based coolants can react with zinc in brass alloys, causing surface discoloration and increasing corrosion risk in subsequent storage or assembly.
Q5: What is the most overlooked factor in brass CNC part quoting?
A: Traceability documentation. Many suppliers quote based only on cycle time and material, ignoring the cost of batch‑level material certificates, first article reports, and statistical process records required for aerospace or medical audits.
